Chicken Gizzard Processing Line | Automated Poultry Gizzard Cleaning & Peeling Line

Processing chicken gizzards efficiently and hygienically has always been a challenge in poultry operations. The glandular structure and tough inner membrane make manual processing slow and inconsistent. Our chicken gizzard processing line addresses this challenge head-on with a fully integrated, continuous-flow system that handles every stage of the process with precision and care.

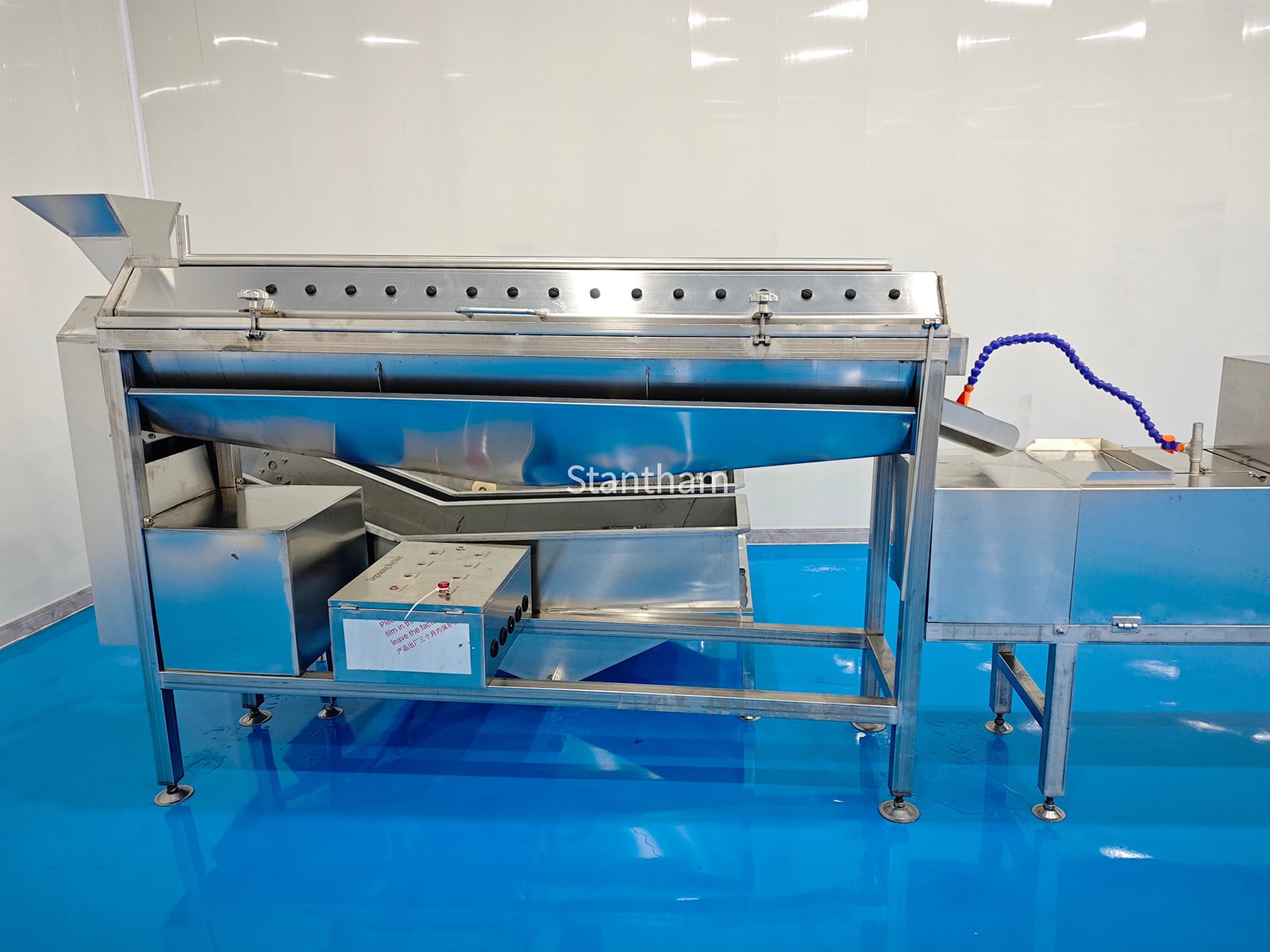

The workflow begins with the horizontal oil remover, which is specifically designed to strip away excess fat and connective tissue from the raw gizzard surface. This initial step is critical because residual fat can interfere with downstream processing and reduce the final product's market appeal. From there, the gizzards move to the proventriculus separator, which precisely removes the glandular stomach portion. This separation step requires careful engineering—if done too aggressively, it can damage the main gizzard muscle; if too gently, it leaves undesirable tissue behind. Our separator strikes the right balance, ensuring clean separation without product loss.

Once separated, an elevator gently lifts the gizzards to the gizzard opener. This unit makes a precise, controlled cut along the natural seam of the gizzard, opening it up for thorough cleaning without tearing or damaging the muscle tissue. The opened gizzards are then elevated once more and fed into the integrated material washing machine, where high-pressure water sprays and tumbling action work together to dislodge residual debris, blood clots, and loose particles.

The final and most critical stage is the gizzard peeler, which removes the tough inner lining—the yellow membrane that gives gizzards their characteristic texture when cooked improperly. Our peeler uses specially engineered rubber rollers that grip and strip away this membrane cleanly, without gouging the underlying muscle. The result is a consistently clean, uniform gizzard that cooks evenly and presents well. Every component in this line is fabricated from food-grade 304 stainless steel, chosen for its excellent resistance to the corrosive effects of moisture, cleaning agents, and organic acids. This material choice ensures the line remains hygienic, easy to sanitize, and structurally sound even after years of continuous operation in a wet processing environment.

▪ Horizontal Oil Remover → Proventriculus Separator → Elevator → Gizzard Opener → Elevator → Integrated Material Washing Machine → Gizzard Peeler

High matching production capacity

Professional customized for 8000–10000 birds per hour slaughter line, perfect matching front-end slaughter output without production bottleneck.

Integrated full-process configuration

Reasonable layout of each standalone machine, compact structure, smooth material transfer, no need for repeated manual turnover.

Excellent processing effect

Realize automatic oil removing, gland separating, cutting, washing and inner membrane peeling, with clean finished gizzards and stable quality.

Hygienic and durable structure

All machine frames and contact parts are made of 304 stainless steel, suitable for long-term humid workshop environment, low failure rate and long service life.

Simple operation and easy maintenance

Modular design, centralized control, easy for staff to operate, daily cleaning and routine maintenance.

This chicken gizzard processing line is specifically engineered for large and medium-sized poultry slaughterhouses that process between 8,000 and 10,000 birds per hour. In facilities of this scale, gizzard processing has traditionally been a labor-intensive bottleneck. A typical plant might employ dozens of workers stationed along manual processing tables, each tasked with trimming, cutting, and cleaning gizzards by hand. This approach is not only costly but also introduces significant variability in product quality—some gizzards may be over-trimmed, others under-cleaned, and the risk of contamination increases with every human touch.

Consider a typical mid-sized plant processing 9,000 birds per hour. Over a single eight-hour shift, that plant generates roughly 72,000 gizzards. Doing the math, manual processing at even a rapid pace would require a dedicated team of 20 to 30 workers, operating under cramped conditions with inconsistent results. Our automated line replaces this entire crew with a compact, efficient system that processes gizzards continuously and consistently. Raw gizzards enter the line from the evisceration department, and within minutes, they emerge as clean, peeled, uniformly processed products ready for chilling, packaging, or further value-added processing.

The line is equally valuable for plants that supply gizzards to secondary food processors. For a factory producing marinated gizzards or canned gizzard products, receiving raw material that has already been professionally cleaned and peeled is a major advantage. It eliminates the need for a separate pre-treatment department, reduces handling-related damage, and ensures that the cooking or marination process starts with a uniform, high-quality input. This consistency directly translates to better flavor absorption, more predictable cooking times, and a superior final product. The modular nature of the line also means it can be adapted to fit your specific layout—whether you are retrofitting an existing facility or designing a new processing hall from scratch. With our support, you can configure the line to match your exact throughput requirements and spatial constraints, ensuring seamless integration with your existing slaughter and evisceration operations.

We are a professional source manufacturer of poultry slaughter and auxiliary processing equipment. We provide integrated overall layout, customized design, production, installation and after-sales service. The gizzard processing line is reasonably priced, stable in performance and perfectly matched to your slaughter line capacity.
